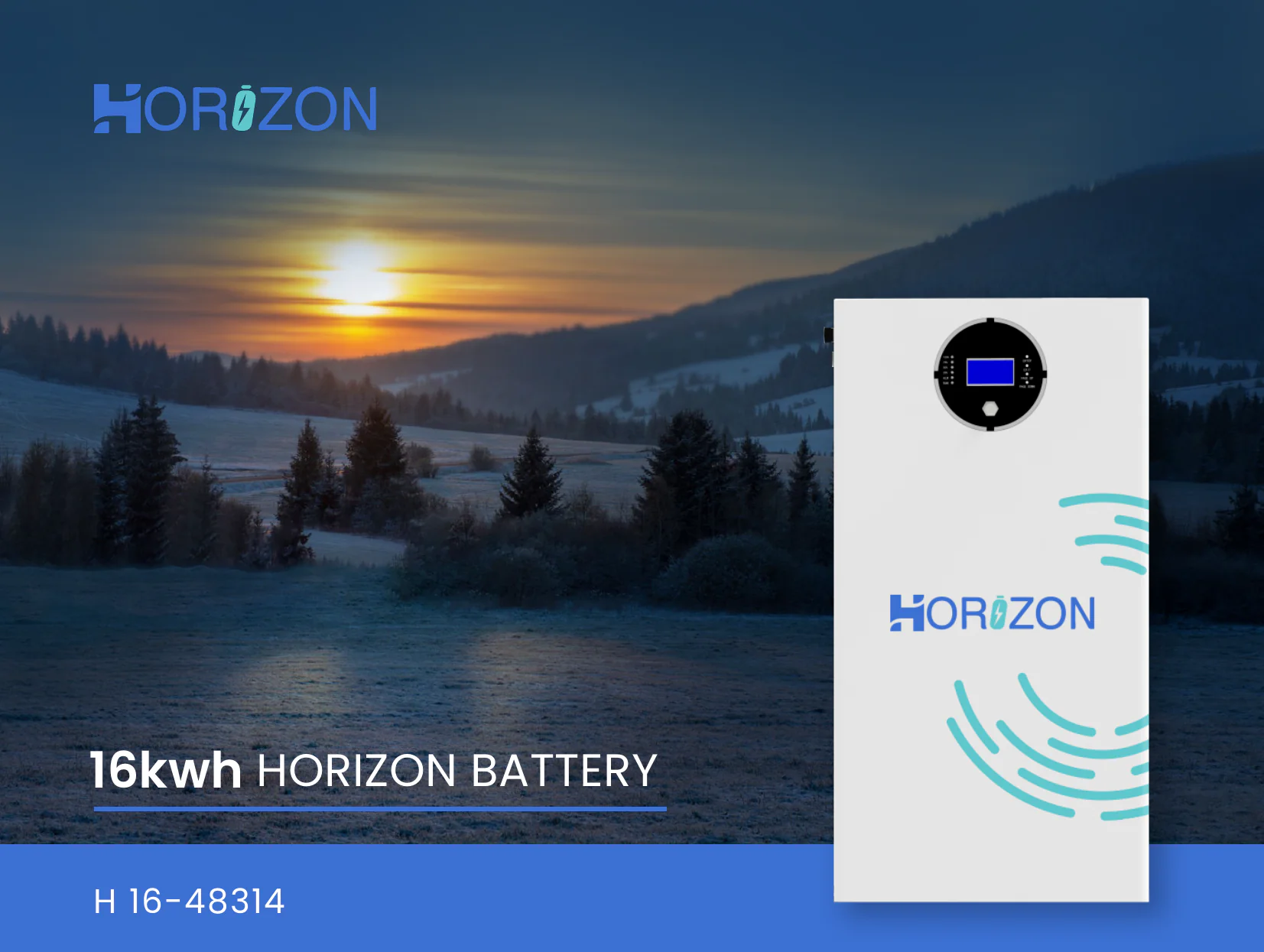

H 16-48314 (16kWh)
Product Features:
- LCD display with Bluetooth connectivity
- Supports up to 15 batteries in parallel
- High inverter compatibility
- Safe LiFePO4 rechargeable battery
- High usable energy ratio with low self-consumption
Description
Technical Specifications:
| Specification | Details |
|---|---|
| Model | H 16-48314 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Warranty | 7 Years |
| Nominal Energy (Wh) | 16,076.8 Wh |
| Nominal Capacity (Ah) | 314 Ah |
| Nominal Voltage (V) | 51.2 V |
| Operation Voltage Range (V) | 40 – 58.4 V |
| Recommended Charge/Discharge Current (A) | 150 A |
| Max. Continuous Charge/Discharge Current (A) | 150 A |
| Peak Discharge Current (A) for 10 sec | 200 A |
| Max. Parallel Quantities (pcs) | 15 pcs |
| Protection Degree | IP21 |
| Dimensions (W×D×H) | 420mm × 270mm × 800mm |
| Net Weight | 115 kg |
| Installation | Wall mounted, floor mounted |
| Communication | CAN, RS485 |
Certification:
- IEC61000
- IEC62619
- UN38.3
Operational Conditions:
- Cycle Life: >6000 Cycles (25°C, 0.5C/0.5C)
- Charge Temperature: 0°C to 60°C
- Discharge Temperature: -30°C to 60°C
